SIBAS PN validation test

Achieve system conformity for Siemens SIBAS PN – and demonstrate it reliably

With our SIBAS PN validation tests, we support system and vehicle manufacturers with the seamless integration of subsystems.

Request a test How we test your subsystem
  • SIBAS PN
  • PROFINET
  • PROFIsafe
  • ISO 9001
  • ISO 27001

The situation

Why interoperability decides whether commissioning succeeds

For the commissioning and smooth operation of a rail vehicle, all requirements for the interoperability of the subsystems with the higher-level control system must be met.

A conclusive and reliable quality assurance system is needed to provide verifiable proof of conformity. Our SIBAS PN validation test can guarantee this at an early stage of the project. Early instead of expensive: what surfaces in the test costs another run – what surfaces only at commissioning costs rework, travel time and possibly the date.

Test scope

How we test your subsystem

Support for the Comdec Profinet/Profisafe tests

Profinet interface communication tests

Test of the implemented SIBAS PN services for system conformity

Checking the SPM sub-project planning

Procedure

Proof in three steps

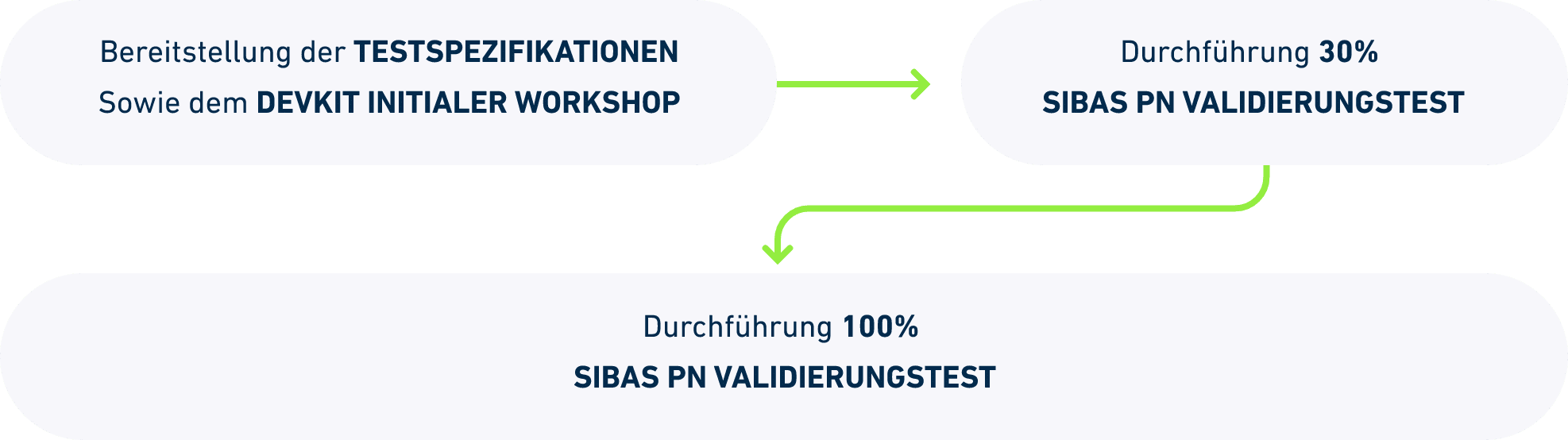

Three-stage procedure: provision of the test specifications and the DEVKIT with an initial workshop, then a 30 % SIBAS PN validation test run, then a 100 % SIBAS PN validation test run.

  1. Test specifications and DEVKIT

    Provision of the test specifications and the SIBAS PN DEVKIT – with an initial workshop.

  2. 30 % test run

    First run of the SIBAS PN validation test – early enough to correct deviations without putting the schedule at risk.

  3. 100 % test run

    Full SIBAS PN validation test as the concluding proof of conformity.

We will minimize your project risks

The Codewerk factor

Tailor-made integration and validation solutions. Would you like to use SOFTSIBAS PN on your subsystem or are you planning for the next generation of your subsystem? We make sure that

  • the Profinet/TCMS connection has been implemented correctly.

  • the SIBAS PN web services are implemented to comply with system requirements.

  • the subsystem functions robustly and reliably.

Audience

Who the test is for

For system and vehicle manufacturers who integrate subsystems into a higher-level control system and need solid proof of conformity before commissioning – whether using SOFTSIBAS PN on an existing subsystem or planning the next generation.

A dependable partner

  • ISO 9001 certified
  • ISO 27001 certified
  • Active in the PROFINET community
  • Member of the PROFINET user organisation
  • Partner in the Siemens Xcelerator ecosystem
